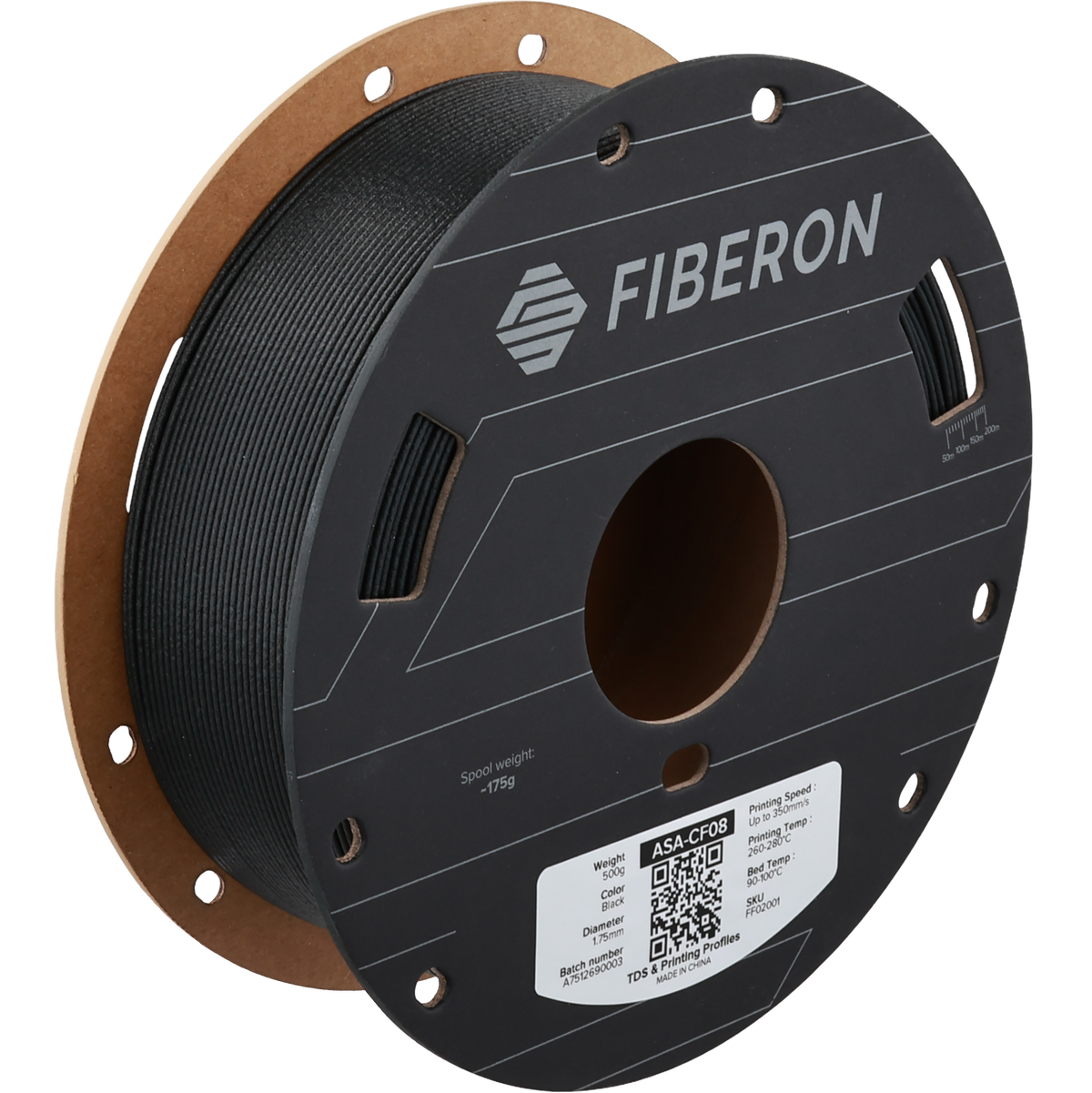

• Fiberon ASA-CF08 1.75mm 0.5kg - Black

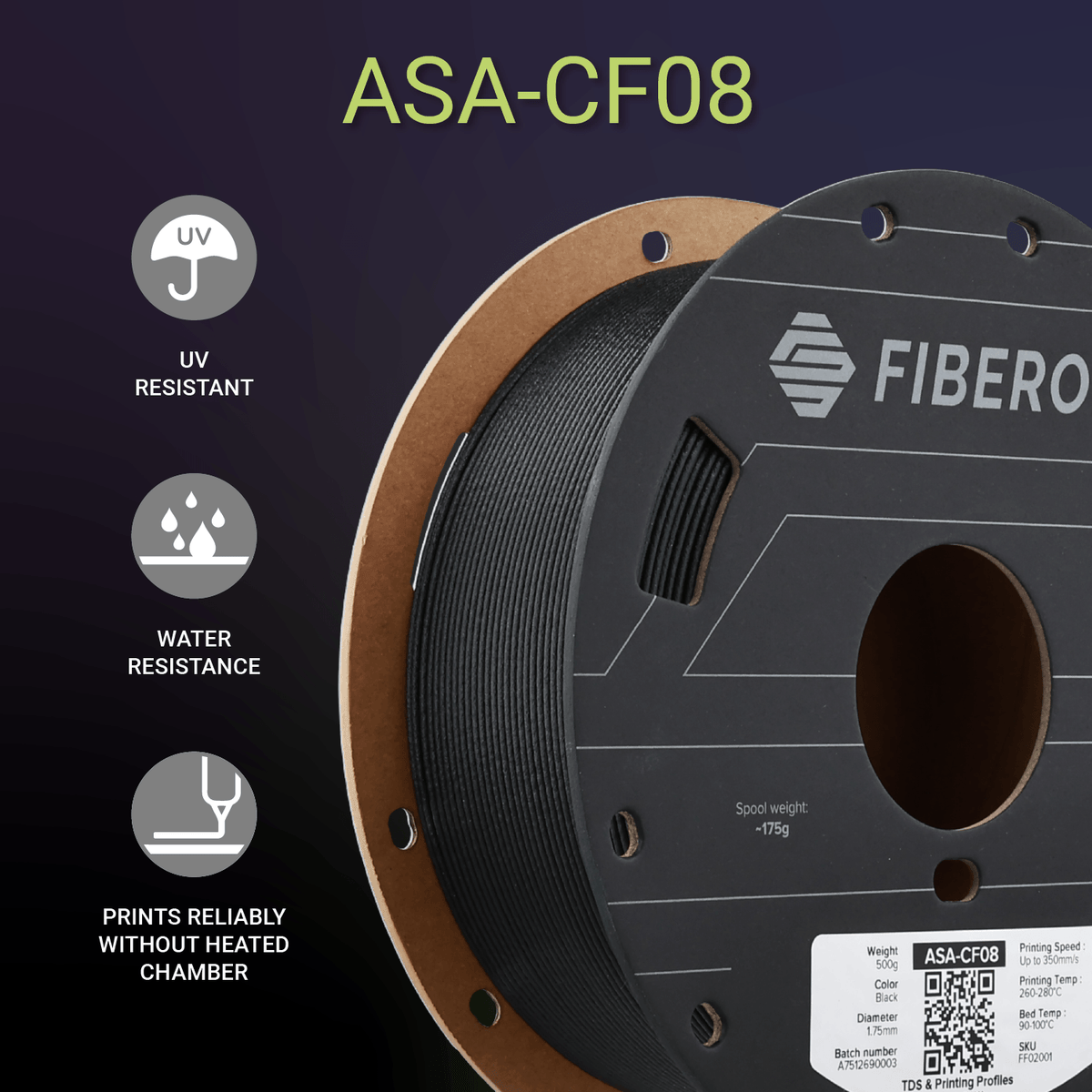

  • Fiberon ASA-CF08 Black spool

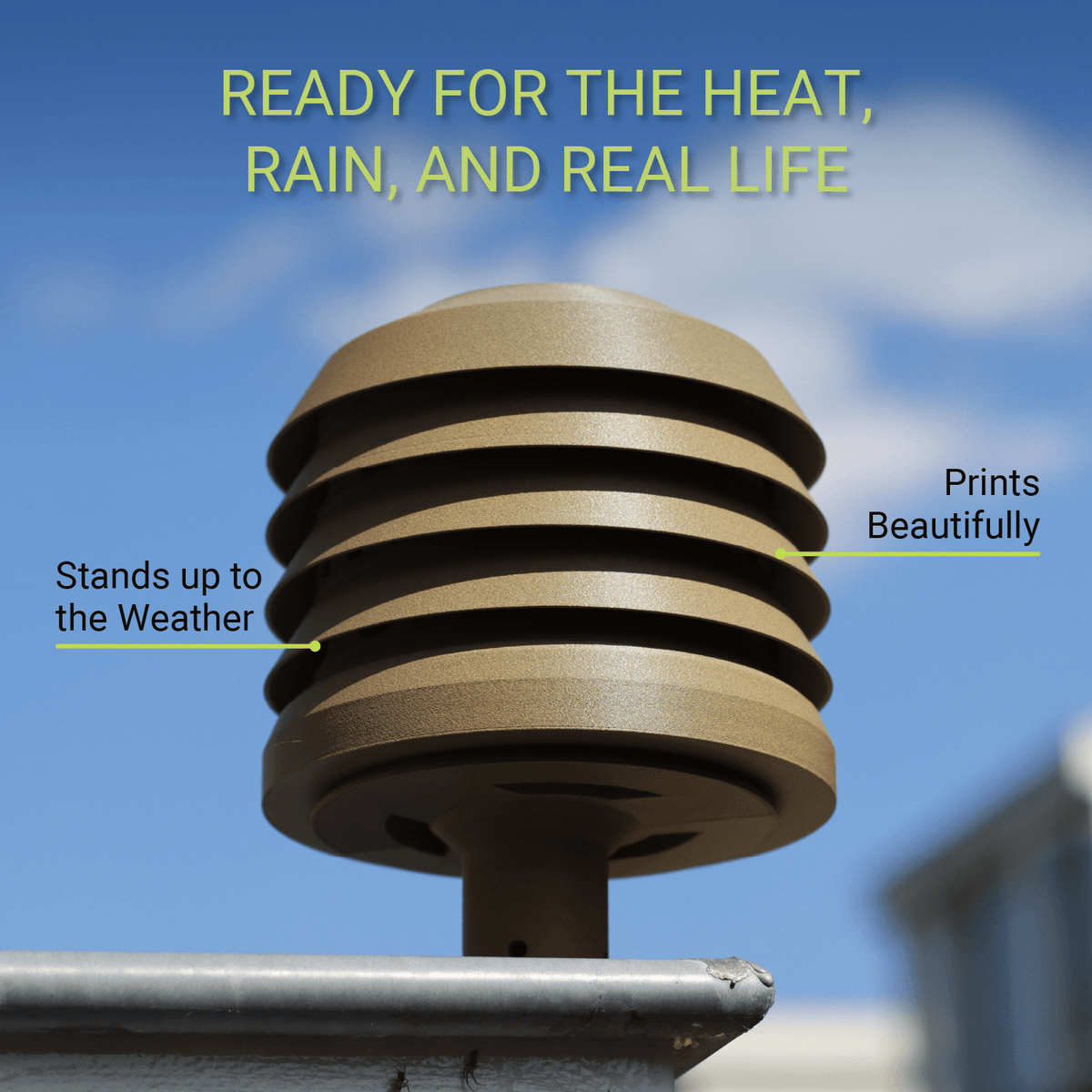

  • Fiberon ASA-CF08 heat and weather resistance

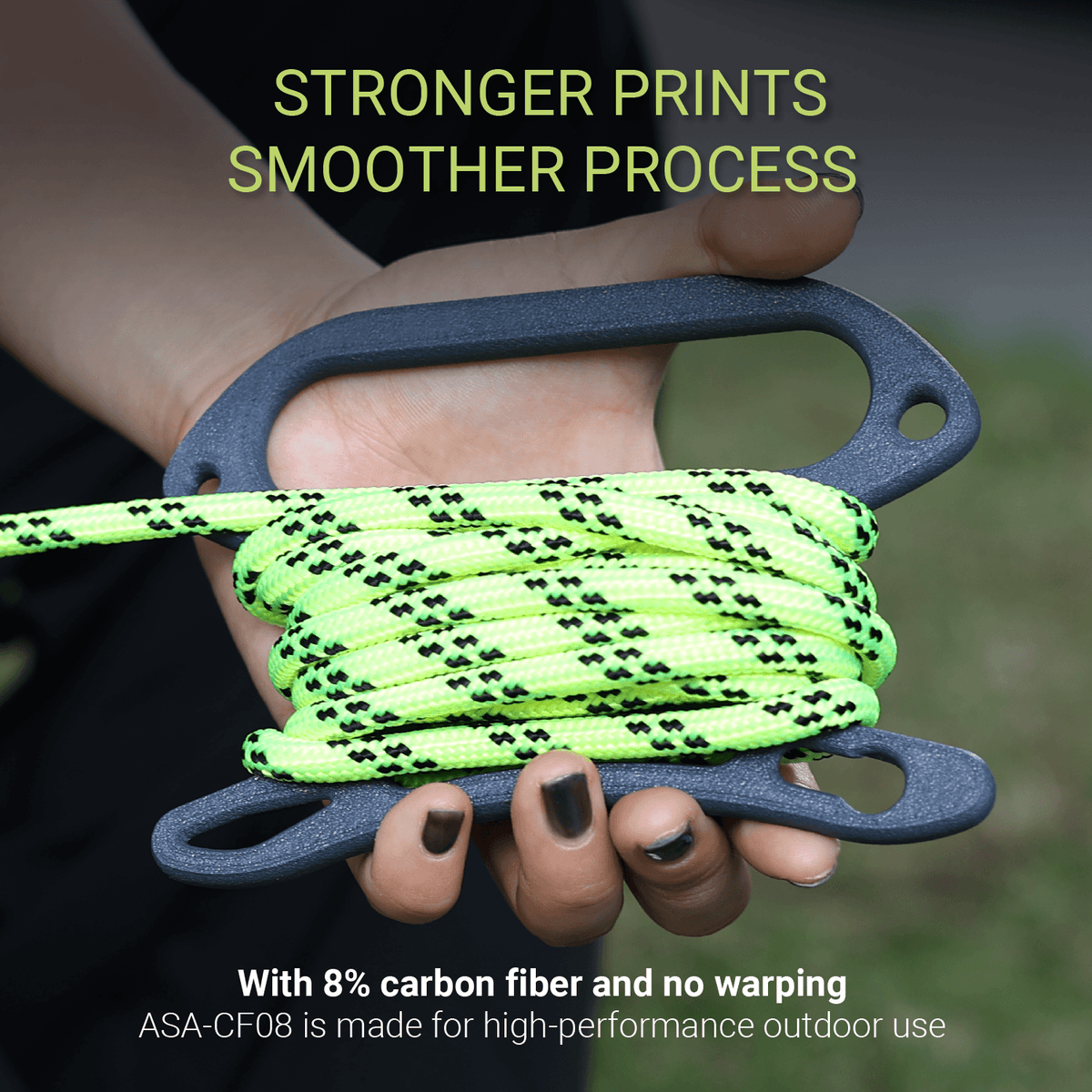

  • Fiberon ASA-CF08 stronger prints
  • Fiberon ASA-CF08 applications

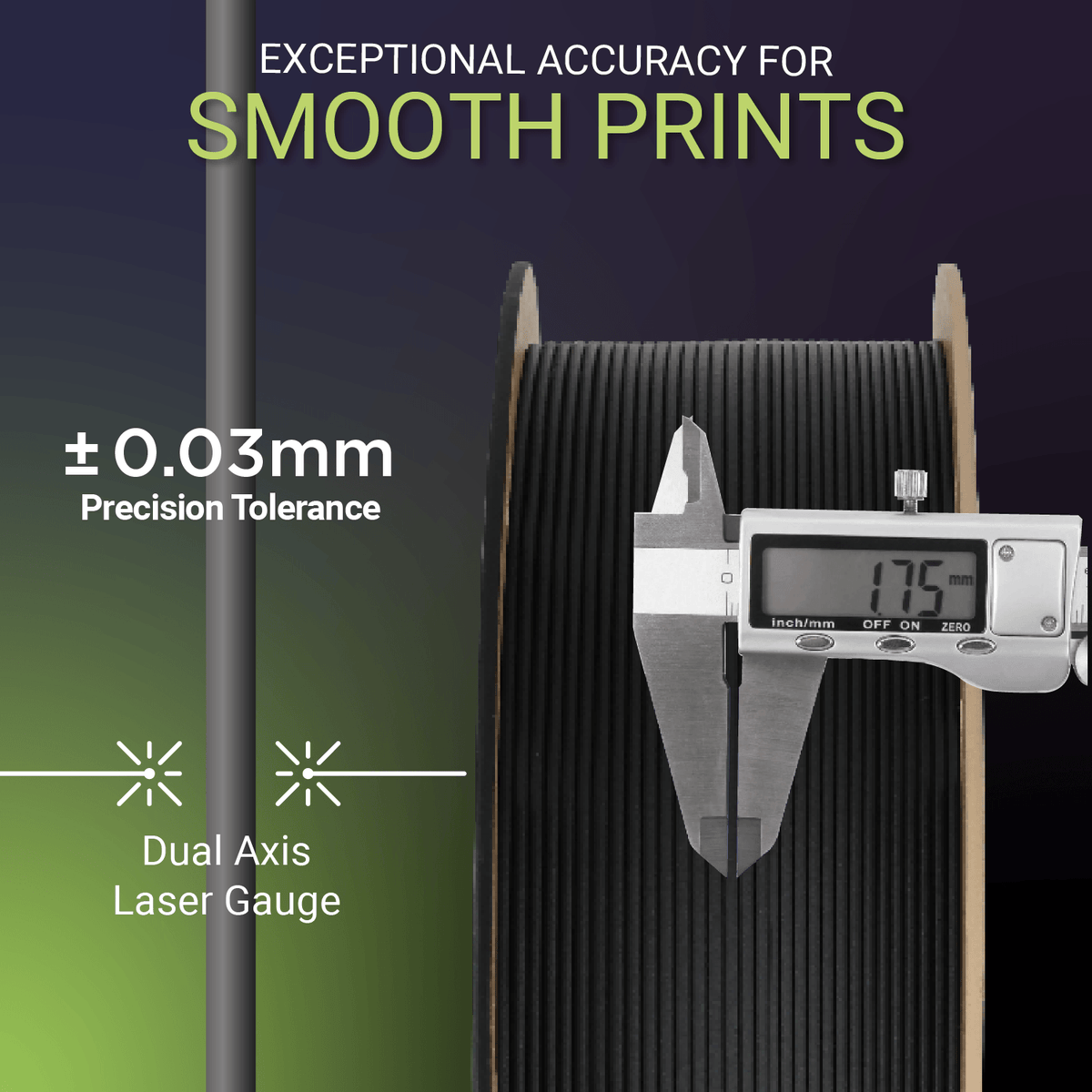

  • Fiberon ASA-CF08 smooth prints
1 6

Zephyr's Market PVT LTD

Fiberon™ ASA-CF08

Fiberon™ ASA-CF08

Rs 11,000.00 LKR
Rs 11,000.00 LKR
Sale Sold out
Color
Diameter
Net Weight

Fiberon™ ASA-CF08 0.5KG 3D Printer Filament

Fiberon™ ASA-CF08 combines the UV and weather resistance of ASA with 8% carbon fiber by weight for added stiffness and reduced warping. It has a matte finish that hides layer lines.

Key Features

  • ASA with 8% carbon fiber by weight; UV and weather resistant
  • Bending strength of 69.1 MPa and tensile strength of 43.5 MPa (XY)
  • Heat deflection temperature up to 103 °C at 0.45 MPa
  • Print speeds up to 350 mm/s, with low warping
  • Vacuum-sealed, tangle-free spool

Please Note

  • The material is brittle and abrasive; take care with AMS and other multi-material systems

Ideal Applications

  • Enclosures and fixtures
  • Load-bearing parts
  • Outdoor or heat-exposed components

Product Specifications

  • Material: Fiberon™ ASA-CF08
  • Net Weight: 0.5KG
  • Filament Diameter: 1.75mm
  • Color: Black

What is Jam-Free™ Technology?

Polymaker Jam-Free™ Technology increases the heat resistance of the filament itself (not the printed part) to 140˚C.
This prevent any jamming issue due to the hot end heat creep issue.
Heat creep is the process of heat spreading irregularly throughout your hot end, softening the filament before entering the melting chamber and jamming the filament by making it expand in the cold end..
The increase of the filament heat resistance from 60˚C to 140˚C ensures a Jam-Free experience.
(Note the printed part will have the same heat resistance as regular PLA: ~60˚C)

Printing and Drying Settings

Printing Temperature: 230˚C - 240˚C
Bed Temperature: 70˚C - 80˚C
Printing Speed: 30mm/s - 50mm/s
Fan: 20%

Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s

Drying Settings: 65˚C for 6h
(Only if the material has absorbed moisture)

How strong is PETG

PolyLite™ PETGis based on a high molecular weight PETG from Natureworks, which makes it one of the most rigid PETG material on the market.
You can check the Young's modulus and bending strength data of PolyLite™ PETG in its TDS, which represent its rigidity, and compare it with other materials of our portfolio.

Spool Dimensions?

0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g

0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g

1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g

2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g

3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
