Fiberon™ PPS-CF10
Fiberon™ PPS-CF10
Couldn't load pickup availability
Fiberon™ PPS-CF10 is a carbon fiber reinforced PPS (Polyphenylene sulfide) filament, with minimal warping during mechanical strength, high heat resistance, chemical resistance, printing and no need for a heated chamber. With exceptional V0 flame retardancy, and moisture insensitivity, it's specifically designed for professionals operating in extreme conditions.

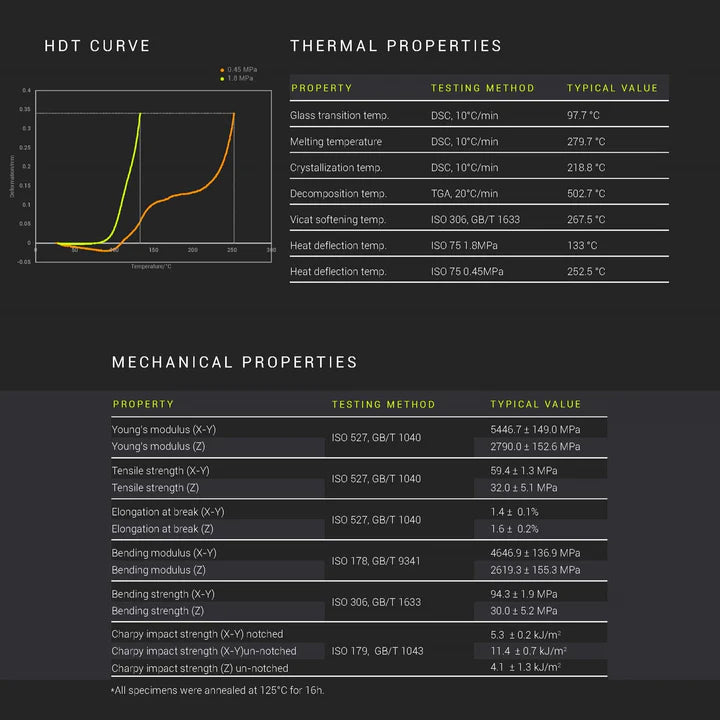

Note: The test samples used in the TDS are 3D printed and annealed at the recommended conditions.
Printing Requirements
- All-metal hotend 310˚C+
- Hardened nozzle
- Annealing post printing
Share
Do I need a hotend that can reach above 300˚C?
Do I need a hotend that can reach above 300˚C?
Yes -we definitely recommend printing with a hotend that can reach at least 310˚C. It might be possible to print at 300˚C, but you will need to print very slowly and you run the risk of having reduced layer adhesion.
Printing and Drying Settings
Printing and Drying Settings
Printing Temperature: 310˚C - 350˚C
Build Plate Temperature: 80˚C - 90˚C
Chamber Temperature: Room Temperature
Printing Speed: up to 300mm/s
Cooling Fan: OFF
Direct Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Indirect Drive:
Retraction Distance: 6mm
Retraction Speed: 60mm/s
Recommended Drying Settings:
Regular Oven: 100˚C for 10h
PolyDryer: Level 3 for 18h (PolyDryer™)
(Only if the material has absorbed moisture)
Annealing Settings: 125˚ for 16h
Will the spools work in an AMS?
Will the spools work in an AMS?
While the spools will roll fine in the AMS, PPS-CF is very brittle on the spool meaning that if it goes through too tight of twists or turns - it may snap. We recommend not using an AMS and having a direct path to the printer.
Spool Dimensions?
Spool Dimensions?
0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g
